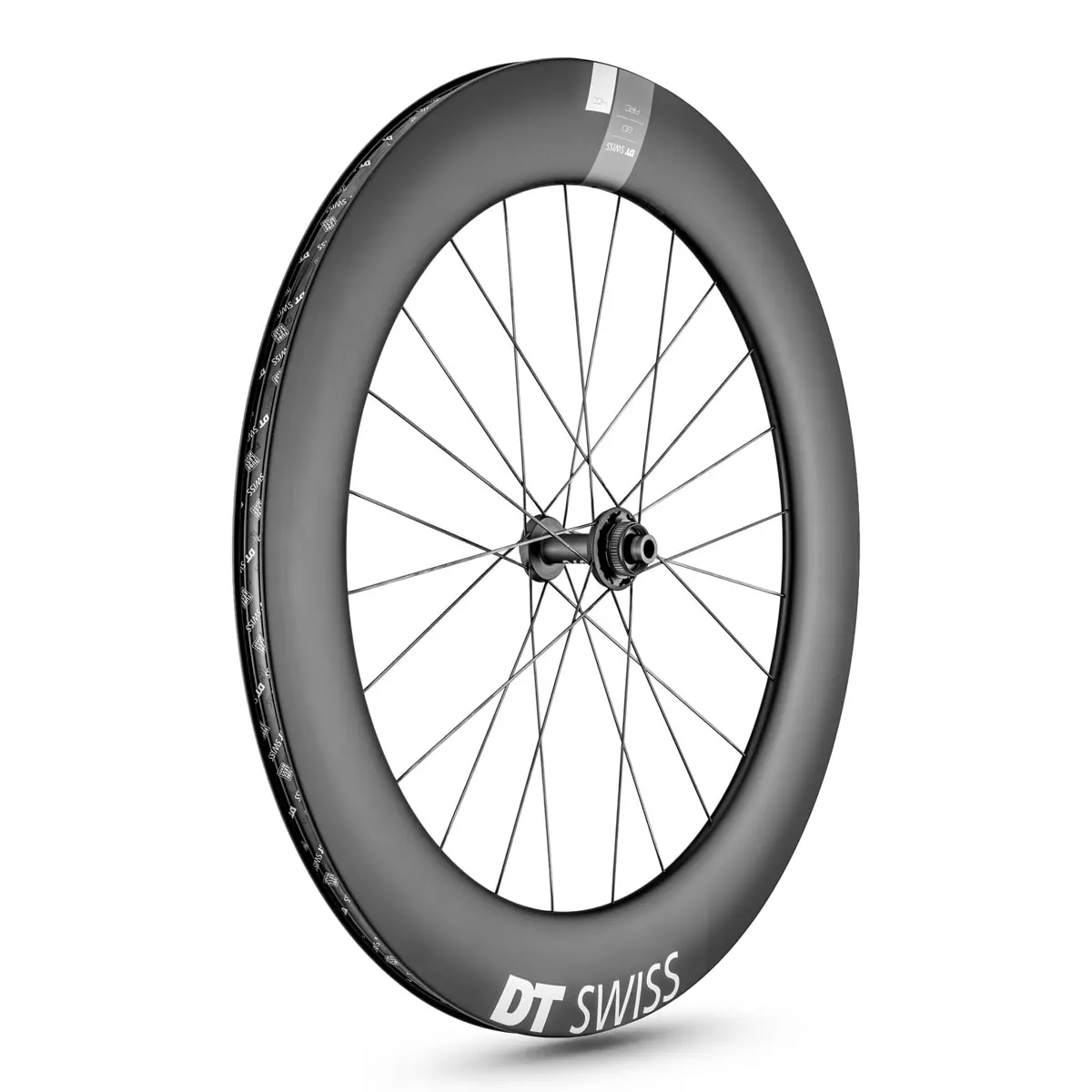

The DT Swiss ARC 1400 Dicut® DB 80 carbon front wheel for road bikes with disc brakes impresses with a perfect mix of acceleration, aerodynamics and handling!
The ARC 1400 system wheel with AERO+ rim profile also stands out for its modified Dicut® aero hub. In close cooperation with the aero experts at SWISS SIDE, it was possible to achieve lower wind sensitivity in crosswinds as well as to improve the overall aerodynamics of the wheel. In moderate crosswinds, you benefit from acceleration through the sail effect as well as a stable aerodynamic position with full control over your bike.

The 80mm deep rim is virtually predestined for flat and fast courses at triathlon and time trial events. High stiffness values and the wheel’s low weight impress pros and ambitious amateur cyclists alike – in fact, all those who like to ride fast.
High-quality DT Swiss aero spokes and the lightweight 240 Dicut® aero hub round off the first-class construction of the carbon wheel. Excellent tubeless compatibility provides less weight, improved puncture resistance, lower rolling resistance and more comfort when equipped with tubeless tyres.

Technologies:

• AERO+:
The symbiosis of air resistance, handling and efficiency. – The optimisation of the wheel aerodynamics by DT Swiss in cooperation with SWISS SIDE reduces rotational and air resistance for low-friction acceleration and controlled steering behaviour in crosswinds. In combination with a larger inner rim dimension for wider tyres, rolling resistance is also reduced. Traction and comfort are enhanced by the wide contact patch.

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss Tubeless Ready Tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, a compatible sealant must be used. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Having learned from years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

Technical details:

Rim:
• Rim material: carbon
• Rim type: clincher (symmetrical)
• Brake type: disc brake
• Rim depth: 80 mm
• Rim width: 32 mm
• Inner rim width: 20 mm
• ETRTO: 622 – 20
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Recommended tyre width: 1.0″ – 1.35″ (25 – 34 mm)

Spokes and nipples:
• Spoke type: DT aero comp® t-head
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: DT Swiss Pro Lock® hidden aluminium

Hub body:
• 240, Dicut®, 2 sealed cartridge bearings
• For disc brakes
• CenterLock brake rotor mount (IS 6-bolt with adapter, prod. code: 2283716)
• Aluminium hub body
• Hub width: 12 x 100 mm (thru axle)

Weight:
• Weight: approx. 859 g
• ASTM classification: 1 (for use on asphalt roads)
• Max. system weight: 110 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss ARC 1400 Dicut® DB 80 Carbon Aero front wheel
• 1 DT Swiss Tubeless Ready rim tape 23 mm (fitted)
• 1 DT Swiss tubeless valve 80 mm
