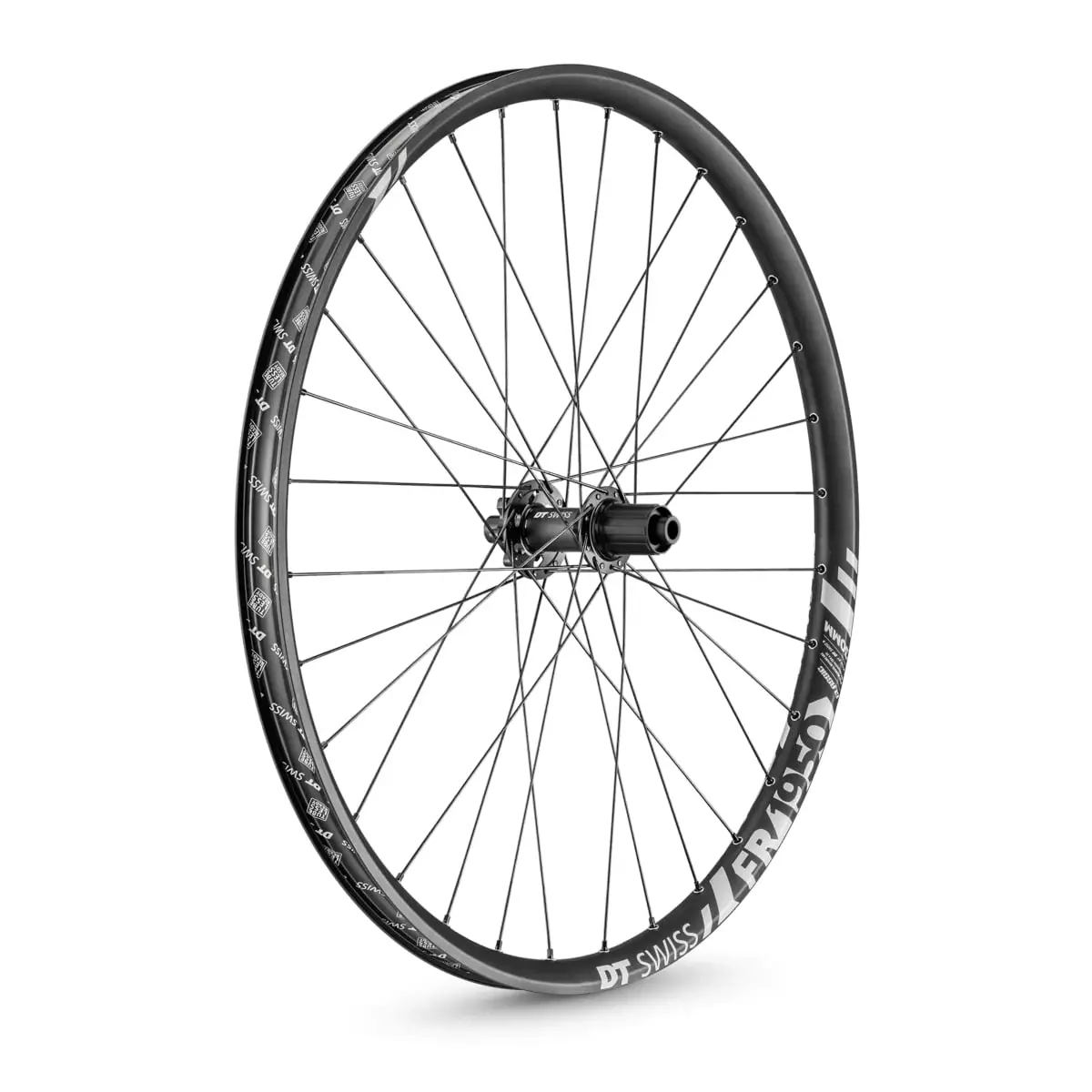

The currently strongest alloy rim in the DT Swiss range combined with a classic 240 hub with J-bend spokes – a dream come true for any demanding gravity biker!

When you enter a big corner at 60 km/h, you need maximum confidence in your material. You can rely on the FR 1950 Classic rear wheel in any situation. With a full 30 mm rim width, the extremely robust aluminium rim gives your downhill tyre optimum lateral support for even higher cornering speeds. The larger air volume also allows you to lower the air pressure in your tyre even further to gain traction where there was none before.
The rim design, the lightweight 240 hub and the classic DT competition® J-Bend spokes have already proven their durability on the bikes of various downhill pros on the toughest downhill courses in the world. And if a spoke does break, replacements can be found practically everywhere.
So whether against the clock or just for fun – the FR 1950 Classic system wheel is for all those who prefer to leave the brakes open.

Technologies:

• RATCHET SYSTEM:
The Ratchet System from DT Swiss has proven itself through high reliability. This reliability is the result of the simultaneous meshing of the teeth of two high-precision star ratchets, which distributes the forces evenly over a large contact area. With the DT Swiss Ratchet System, two conical springs ensure the correct alignment of the ratchets. The degree engagement depends on the number of teeth. The no-tool concept allows easy maintenance and tool-free conversion to common axle and freehub body standards.

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss tubeless ready tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, a compatible sealant must be used. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Having learned from years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

• PRO LOCK®:
DT Pro Lock® prevents the spoke-nipple connection from loosening. In the Pro Lock® process, a special dual component adhesive is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and then hardens completely within a few hours. Re-truing the wheel is possible, yet it will cause a slight decrease in the adhesive power each time.

Technical details:

Rim:
• Wheel size: 29“
• Rim material: aluminium
• Rim type: clincher
• Brake type: disc brake
• Rim depth: 21 mm
• Rim width: 35 mm
• Inner rim width: 30 mm
• ETRTO: 30 – 622
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Suitable for tyre widths: 1.9″ – 3.2″

Spokes and nipples:
• Spoke type: DT Swiss competition® J-Bend
• Number of spokes: 32 pieces
• Lacing: 3-cross
• Nipples: DT Swiss ProLock® Squorx ProHead aluminium

Rear hub:
• 240, Classic, 4 sealed cartridge bearings
• For disc brakes
• Aluminium freewheel and aluminium hub body
• IS 6-bolt brake rotor mount
• Ratchet freewheel system, 18T(20° degree engagement)

Axle:
• Rear axle: 12 x 148 mm (BOOST thru axle)

Sprocket compatibility (with pre-mounted SHIMANO HG freewheel):
• Compatible with SHIMANO/SRAM 9-/10-speed road
• Compatible with Shimano/SRAM 9-/10-/11-speed MTB

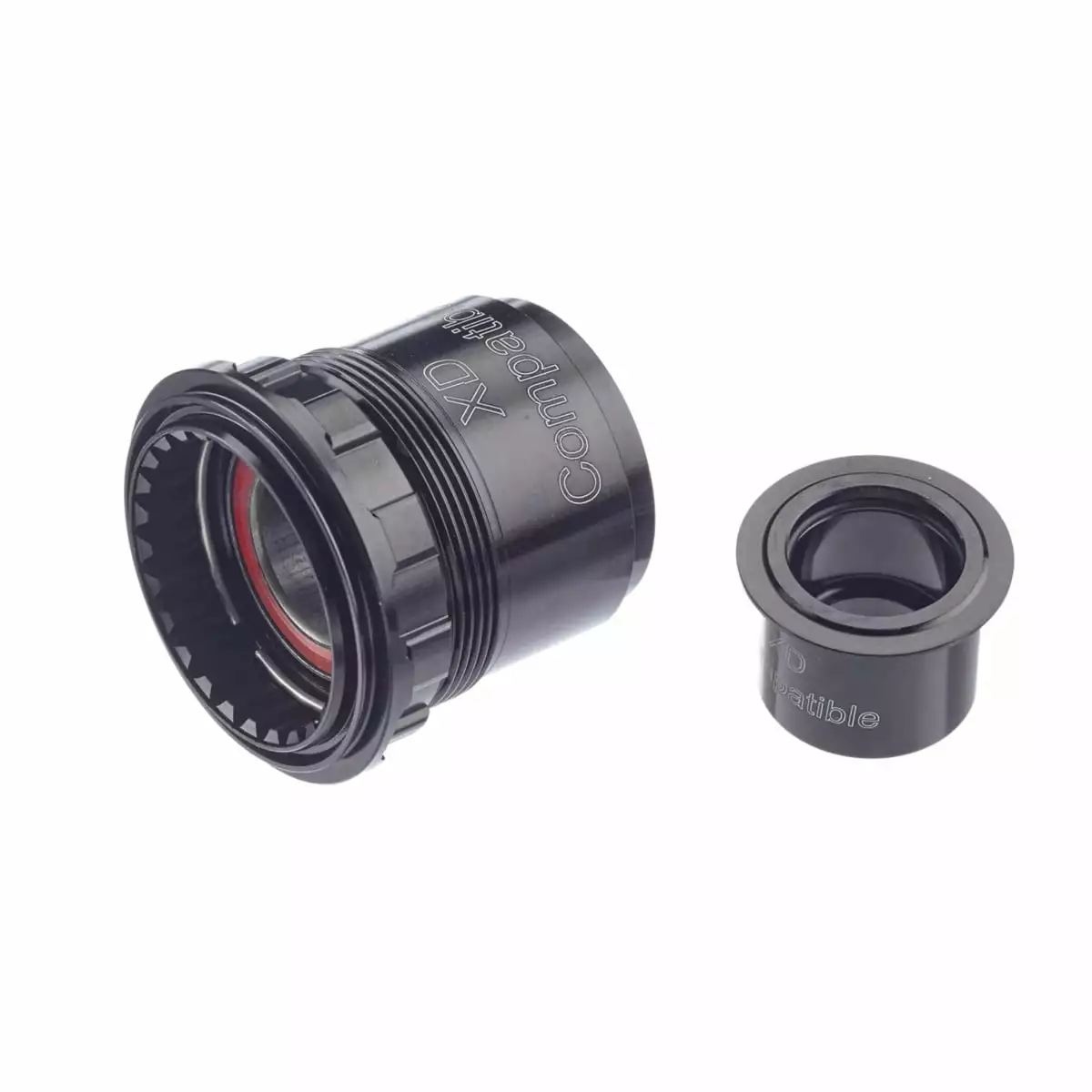

Sprocket compatibility (with SRAM XD™ freewheel, included):
• SRAM XD™ 11-/12-speed

Weight:
• Weight: approx. 1107 g
• Intended use – ASTM category 5: for use in extremely steep and rough terrain with very large jumps/steps as well as very high speeds by riders with extremely good riding skills (bike parks, downhill tracks, dirt jump etc.)
• Max. system weight: 140 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss FR 1950 Classic 30 BOOST rear wheel SHIMANO HG
• 1 DT Swiss SRAM XD™ freewheel
• 1 DT Swiss Tubeless-Ready Tape (rim tape, pre-mounted)
• 1 DT Swiss tubeless valve

Tip:
The freewheel body can be exchanged without tools! You can find a how-to video for exchanging the freewheel body from DT Swiss here: https://www.dtswiss.com/en/support/how-to-videos
You can find the DT Swiss special grease under prod. code: 226341701.
