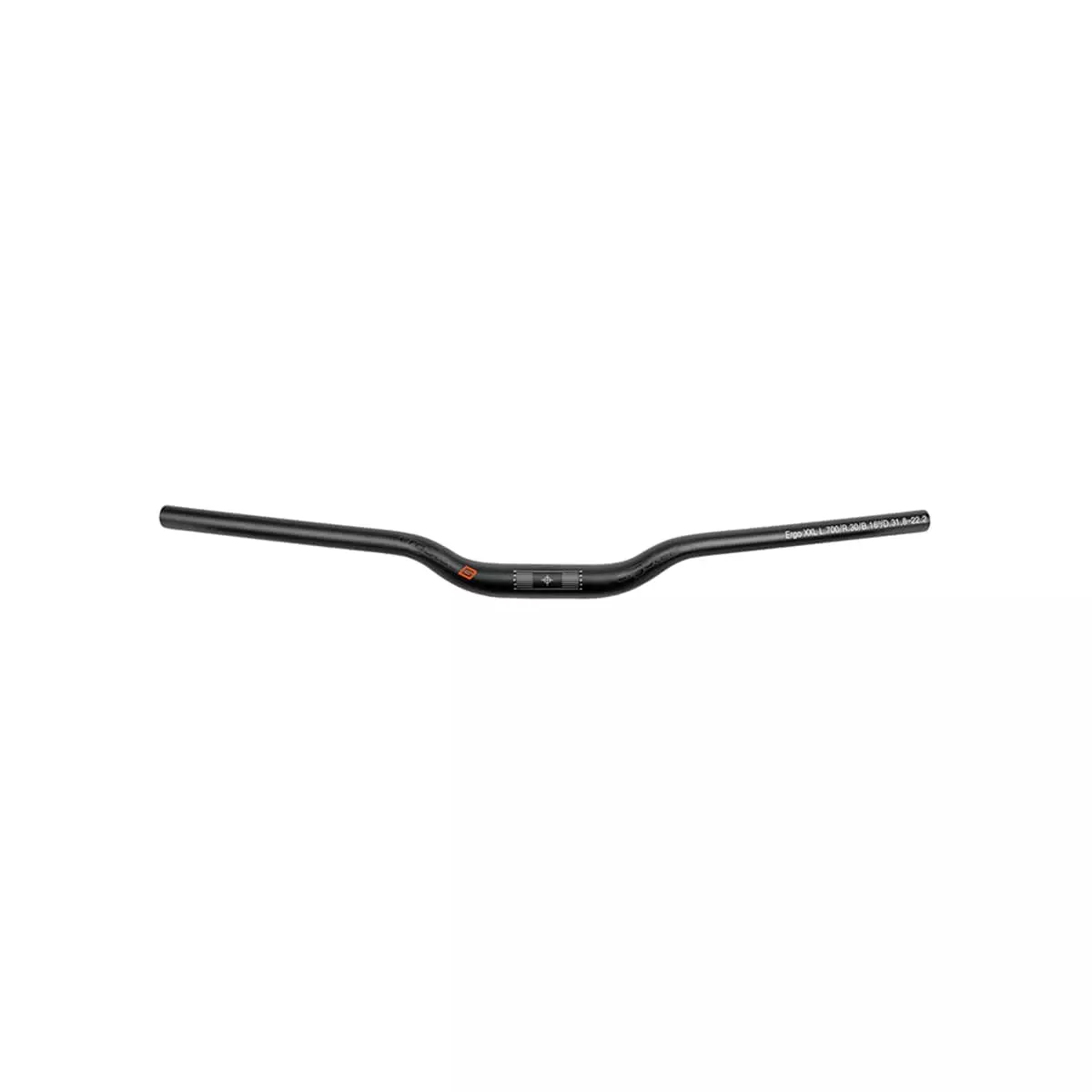

Ergotec ERGO PLUS SERIES Handlebar

A handlebar made to measure: Since everyone’s body is different, ergotec offers the Ergo Plus Series MTB bar in various different sizes. So you don’t have to cut the bars to length to adjust them to perfectly fit you and your bike. The handlebar widths vary between 660 and 700 mm. While the upsweep is the same for each version of the handlebar, the backsweep increases with the handlebar width by 2 degrees. All Ergo Plus Series bars are classified as ergotec Safety Level 6 and developed for high loads.

Details:
• Robust mountain bike bar with 30 mm rise
• Different sizes with adapted ergonomics
• ergotec Safety Level 6*

Specs:
• Material: aluminium 7050 T76, sandblasted
• Width: 660 mm (size L), 680 mm (size XL), 700 mm (size XXL)
• Handlebar clamp: 31.8 mm
• Rise: 30 mm
• Upsweep: 5°
• Backsweep: 12° (size L), 14° (size XL), 16° (size XXL)
• Max. system weight (cyclist, bike and luggage): MTB/Race (also with electric drive) 120 kg
• Weight: approx. 275 g (size L), approx. 285 g (size XL), approx. 295 g (size XXL)

In the box:
• 1x ergotec Ergo Plus Series riser bar

*The product classification of the ergotec Safety Level complies with the DIN EN ISO 4210 standard for bikes and DIN EN 15194 for e-bikes. The ergotec Safety Level is always valid for the entire steering system. If stem and bars have a different safety level, the lower value will apply to the entire system.
