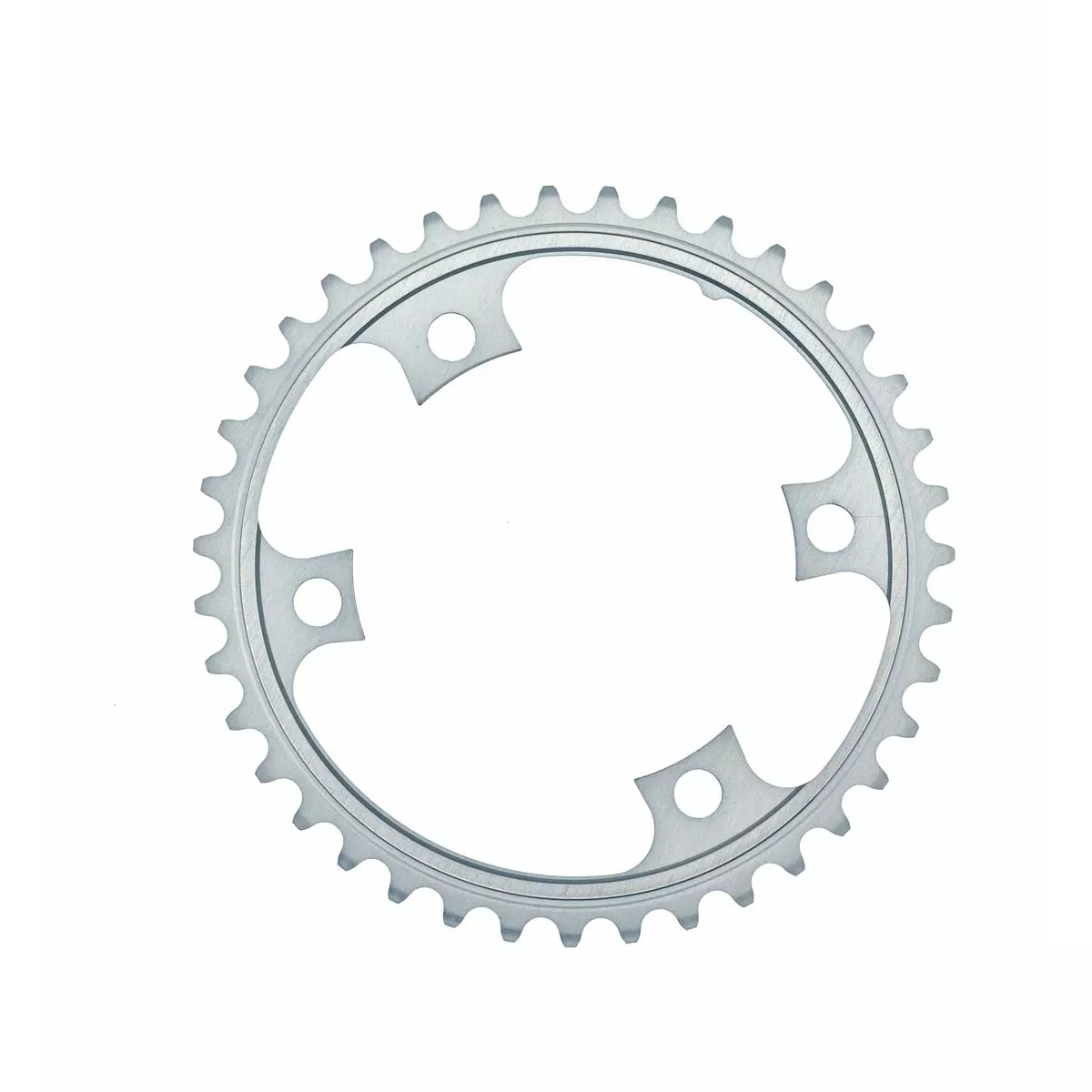

Shimano 105 FC-5800 Chainring

Shimano chainring for FC-5800 Hollowtech II cranksets.

· Compatible with 11-speed/double
· Bolt circle Ø: 110 mm
· Bolt spacing: 65 mm
· Material: aluminium

· 53 MD teeth black / manufacturer’s ref.: Y-1PH98130
· 39 MD teeth black / manufacturer’s ref.: Y-1PH39000

· 52 MB teeth black / manufacturer’s ref.: Y-1PH98110
· 36 MB teeth black / manufacturer’s ref.: Y-1PH36000

· 50 MA teeth black / manufacturer’s ref.: Y-1PH98030
· 34 MA teeth black / manufacturer’s ref.: Y-1PH34000

· 53 MD teeth silver / manufacturer’s ref.: Y-1PH98140
· 39 MD teeth silver / manufacturer’s ref.: Y-1PH39010

· 52 MB teeth silver / manufacturer’s ref.: Y-1PH98120
· 36 MB teeth silver / manufacturer’s ref.: Y-1PH36010

· 50 MA teeth silver / manufacturer’s ref.: Y-1PH98100
· 34 MA teeth silver / manufacturer’s ref.: Y-1PH34010

Also compatible with the following cranks:
· FC-6800

For the manufacturer’s code for the crank, please see the inside of the right crank arm at the same height as the pedal thread (FC-XXXX)!

Note: To guarantee smooth shifting, you must only combine chainrings of the same type, e.g. MA!
